Zhejiang Zhongdeng Electronics Technology CO,LTD laigz@zjzdkj.com.cn +86-573-83280296
製品詳細
起源の場所: 中国
ブランド名: Zhongdeng
モデル番号: ZD-GR250GN
支払いと送料の条件
最小注文数量: 議論する
価格: to be discussed
受渡し時間: 2～3週間
頻度: |
GNSS |
妨害範囲: |
50km |
ジャミングパワー: |
250W |
労働時間: |
24時間連続稼働 |
電源: |
AC220VまたはDC24V(車載) |
頻度: |
GNSS |
妨害範囲: |
50km |
ジャミングパワー: |
250W |
労働時間: |
24時間連続稼働 |
電源: |
AC220VまたはDC24V(車載) |
50km 10-band GNSS jammer system designed to interfere with drones using satellite navigation systems, forcing them to move away from their intended destinations.
This advanced GNSS jammer system targets all major satellite navigation signals. Utilizing sophisticated jamming technology, it generates high-efficiency digital jamming signals to disrupt satellite navigation, preventing unauthorized devices from obtaining GNSS location information.

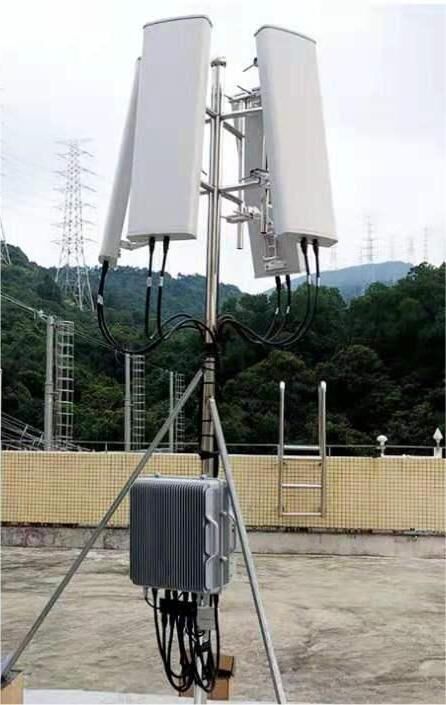

The system offers versatile deployment options including stationary installation and vehicle-mounted applications. Its compact design facilitates easy integration and deployment, available as standard indoor rack-mounted units or outdoor units housed in aluminum cases.
Primary Application: Designed for deployment in sensitive areas where drone intrusion via GNSS navigation signals must be prevented, specifically targeting threats such as the "poor man's cruise missile."
| Parameter | Specification |
|---|---|
| Jamming Bands | GPS L1, L2, L5; GLONASS L1, L2; GALILEO E1, E5a, E5b; BDS (multiple frequencies) |
| Total Jamming Power | 250W |
| Jamming Range | 50km |
| Antenna Gain | 12-15dBi |
| System Power Consumption | 1200W |
| Main Unit Dimensions | 52 × 53 × 47 cm |
| Main Unit Weight | 49kg |
| Power Supply | 220VAC or 24VDC (vehicle mounted) |
| Continuous Operation | 24 hours |
| Operating Temperature | -40℃ to +55℃ |
